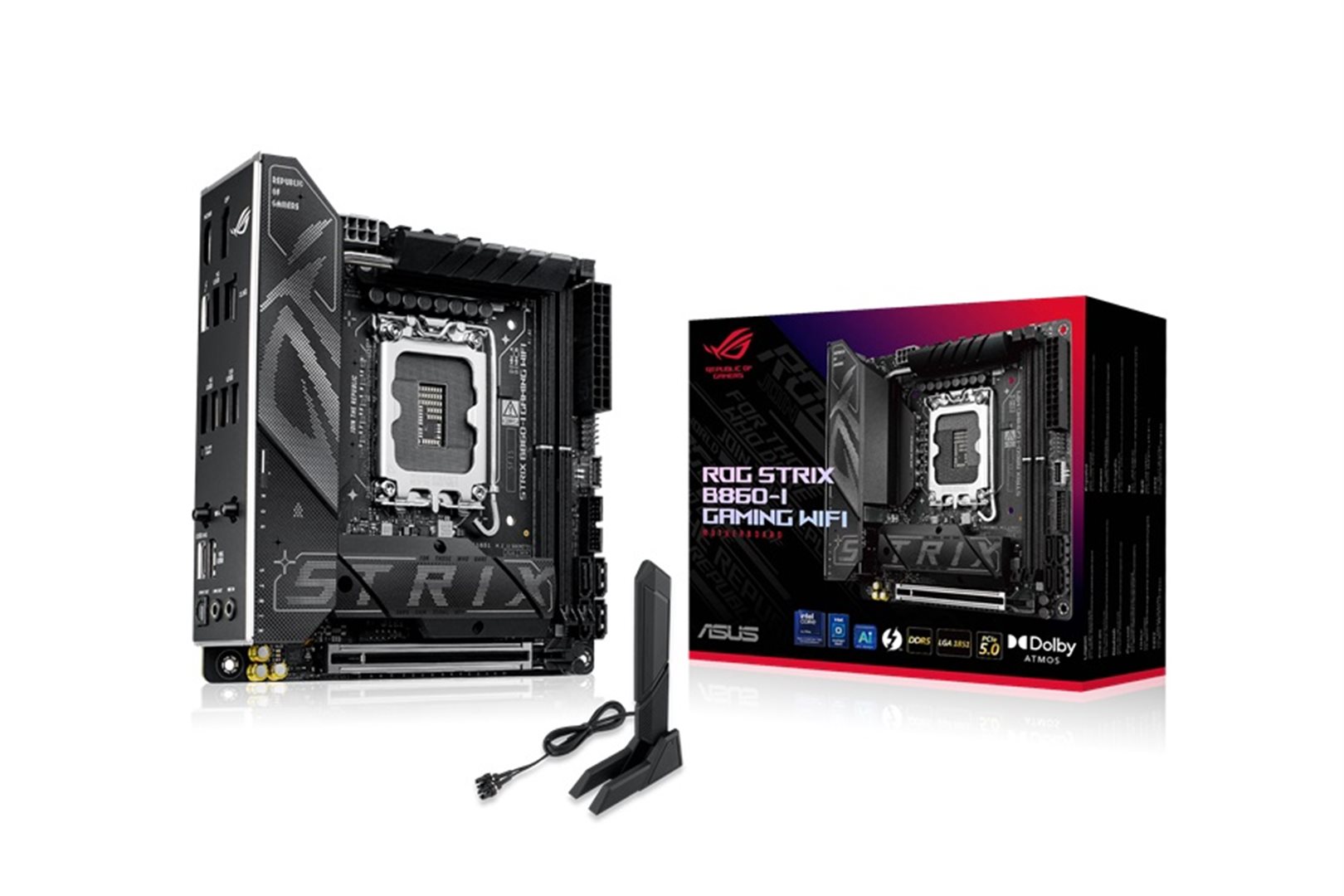

ASUS ROG STRIX B860-I GAMING WIFI

ASUS ROG STRIX B860-I GAMING WIFI

• Mini ITX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

• Dvoukanálová paměťová architektura
• DIMM Fit
• Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III (AEMPIII)

Grafické porty:

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs

Rozšiřující sloty:
Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 5.0 x16 slot

Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)

• M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)

Intel® B860 Chipset**

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet:

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

Připojení a Bluetooth:

USB:
Zadní USB (Total 7 ports)

• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Přední USB (Total 7 ports)

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

Vstupy/výstupy zadního panelu:

• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x Clear CMOS button

Interní vstupy/výstupy:
Ventilátory a chlazení:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 1 x 4-pin Chassis Fan headers

Napájení:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Úložiště:

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Různé:

• 2 x Addressable Gen2 headers
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

Příslušenství:
Kabely:

• 2 x SATA 6Gb/s cables

Různé:

• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 2 x Screw packages for M.2 SSD
• 1 x Fan Bracket
• 1 x ROG key chain
• 1 x ROG Strix stickers

Dokumenty:

• 1 x Quick start guide
